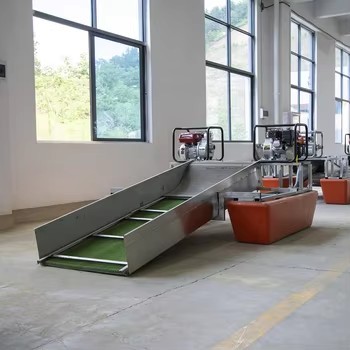

Mini scale alluvial gold suction dredge used for gold recovery
1. Small Gold Suction Dredging Equipment For Gold Panning, Feature
| Mini Gold Dredger |
| Model | QFT3-2 | QFT4-3 | QFT5-3 |
| Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
| Diesel | | | |
| Model | RZ170F | RZ178F | RZ186FA |
| Power | 5hp | 7hp | 12hp |
| Rotate speed | 3600rpm | 3600rpm | 3600rpm |
| Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
| Fuel capacity | 2.65L | 3.3L | 5.5L |
| Pump | 1 set | 1 set | 2 sets |
| Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
| Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
| Water flow | 33m³/h | 60m³/h | 80m³/h |
| Head | 30m | 30m | 25m |
| Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
| Work capacity | 5m³/h | 8m³/h | 13m³/h |
| Gold chute | | | |
| Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
| With gold felt | With gold felt | With gold felt |
| Float | | | |
| Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
| Suction pipe | 3inch | 4inch | 5inch |
2. Small Gold Suction Dredging Equipment For Gold Panning, Detail Introduce
The samll gold suction dredging equipment is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.
3. Small Gold Suction Dredging Equipment For Gold Panning, Our Services.
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
- Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
- Equipment of right model is selected for customers.
- Customized products and processing flow sheet can be designed and developed to meet customer's special needs.
- Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
- Inspection is a must before delivering of the goods.
- Assistance to make a construction plan by supplying all drawings and data needed.
- Most favorable scheme for you with the guaranteed quality.
- Timely communication to make sure improvement of project and your requirement met.
After-sales service:
We are devoted to helping you to benefit as much as possible.
- Installation, adjustment, and testing of equipment is available.
- Train of technicians and workers at site is promised.
- Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
- If any failure or question about the machines or the processing line, contact us and we are available at any time.
3. Small Gold Suction Dredging Equipment For Gold Panning, Our company.
1.We are professional for producing small dredging equipment and kinds of gold mining machine, such as small dredging machine, bucket gold dredger,cutter suction dredger, sand pump dredger and so on.
2.We have own engineer, who has rich experience for desiging and installing the machine.We can design the unique machine according to your situation and requires.
3.We have rich exported experience ,such as Sudan,Ghana, Bengal,Nigeria,Russia and so on.
5. Assist you to get a good small gold dredging equipment
Thank you for your interesting,if you send the inquiry to me,could you kindly tell me some problems, flowing is:
- The working capacity that you want to get.
- The content of mud in your mine.
- It is appreciate that you can tell me more about your mine.
